Galvalume_GRAPHIC

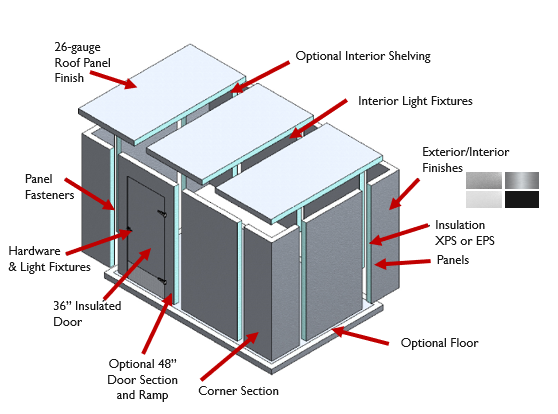

1. Standard Finish

Metal skins. Galvalume: Steel color or Mill is our standard finish. Galvalume is steel coated with a combination of a galvanizing and aluminum materials. It is more resistant to corrosion than galvanized with the strength of steel. 26 gauge is the minimum thickness used. It is also available in white or stainless steel as an optional feature.




2. Insulation

Dade Engineering uses Panel Core 20 Extruded polystyrene foam from The Dow Chemical Company with R-Values of R-29 for coolers and R-32 for freezers. R-value is the resistance to heat flow. The higher the R-value, the better the insulation.

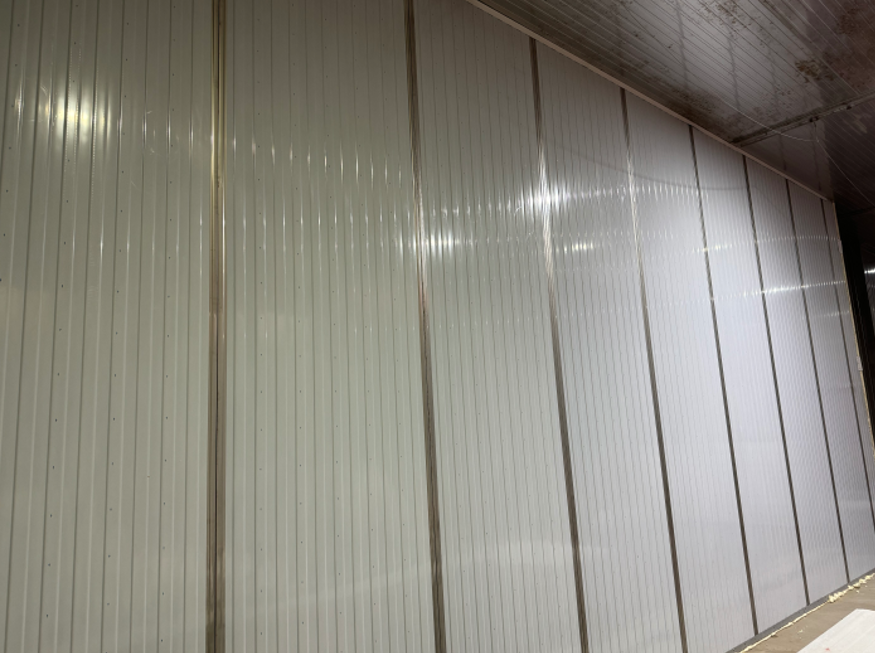

3. Panels

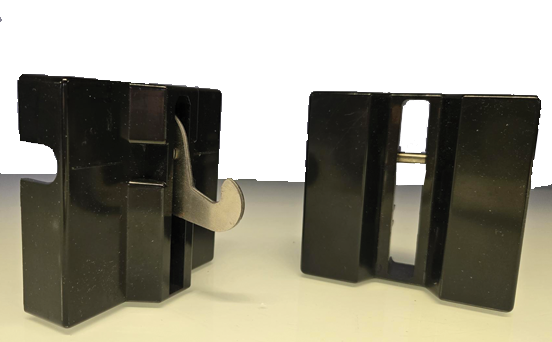

Light weight preassembled easily assembled minimum of 3 positive quick locking (cam lock) fasteners. Panel Sealent-ordorless, non-corrosive, insoluble, will hold seal though temperature range of 160° to -50° on N.S.F. walk-ins. Factory installed NSF vinyl panel gaskets are used. Panels are made of 26 ga Mill finished Stucco embossed Galvalume skin, 4" Extruded Polystyrene Foam (EISA Approved).

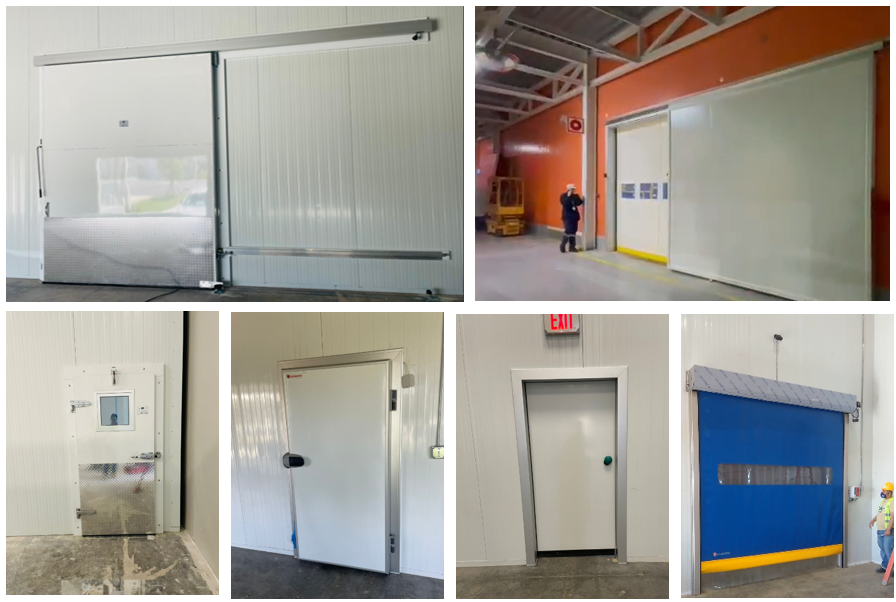

4. Doors

Lightweight overlapping or infitting stock sizes available. Galvalume or stainless steel. Polystyrene insulation with closed cell neoprene gasket flush-mounted switch with pilot light factory wired to vapor-proof light on interior flushed mounted digital thermometer. Diamond plate kick plate, chrome plated hardware, key-latch, inside safety release, spring door closure and door sweep.

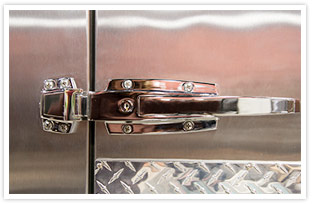

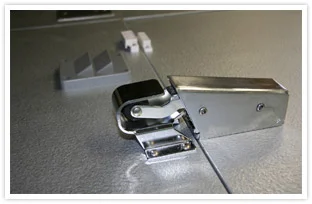

5. Hardware

All door hardware is chrome plated. Inside safety release, factory wired heater cables on freezer doors.


6. Light Options

Vapor proof light w/ glass globe, 4' LED cooler/freezer lights. 4' Fluorescent cooler/freezer light.

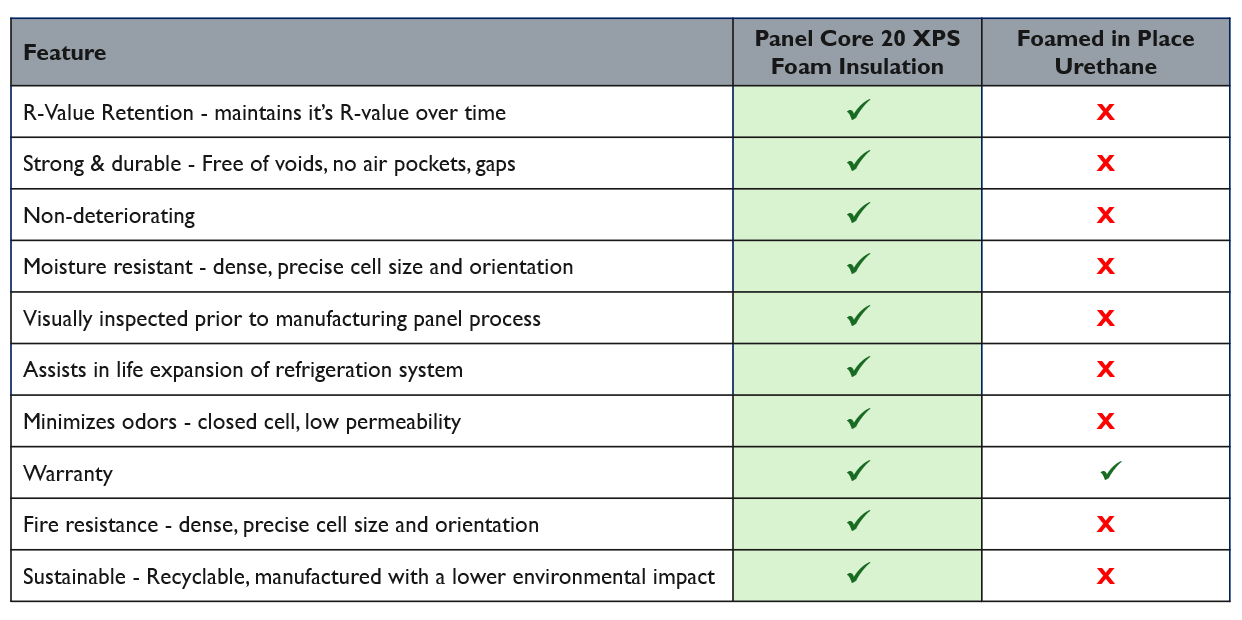

Styrofoam brand extruded Polystyrene Foam for walk-in Coolers and Freezers

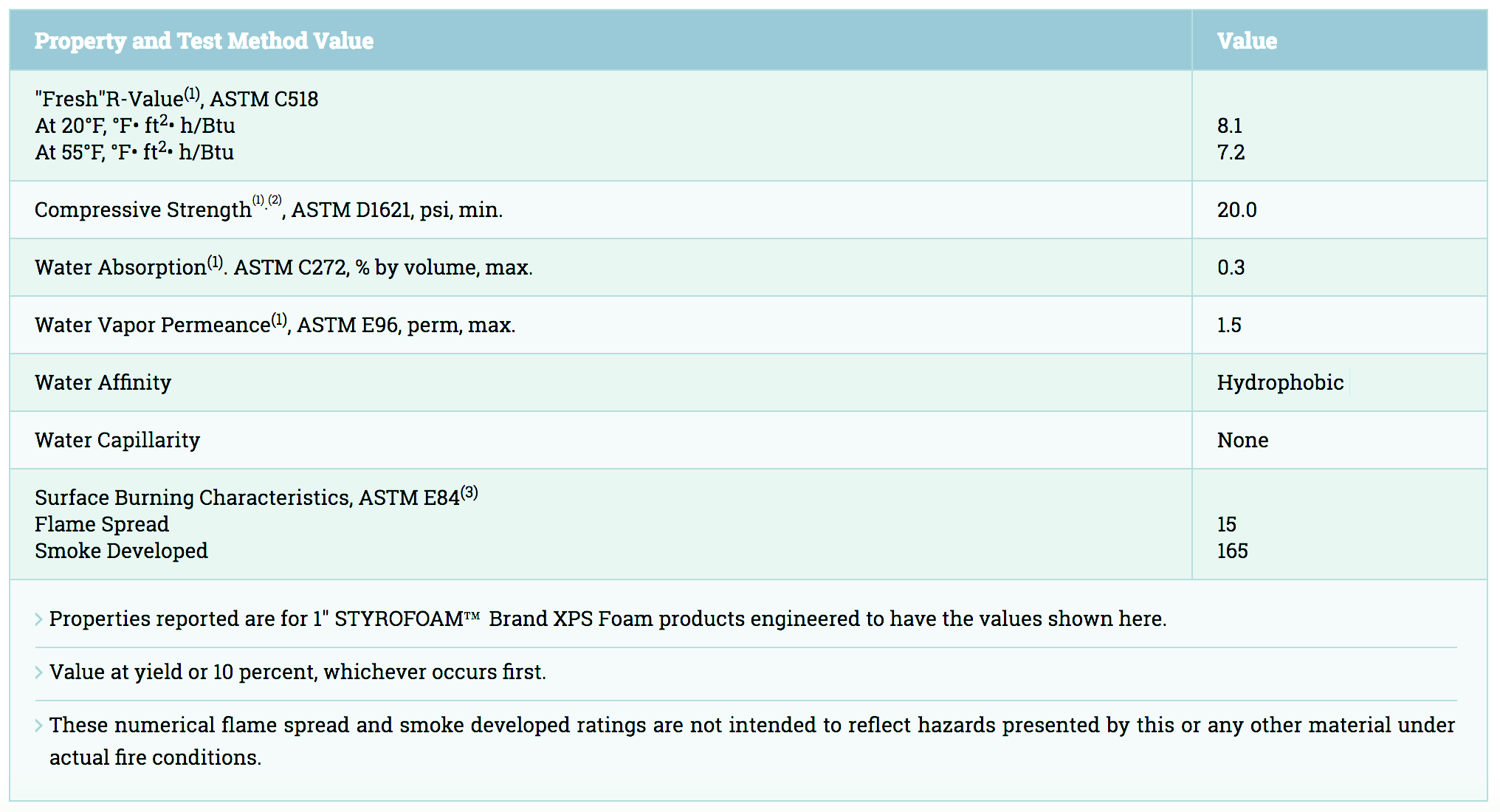

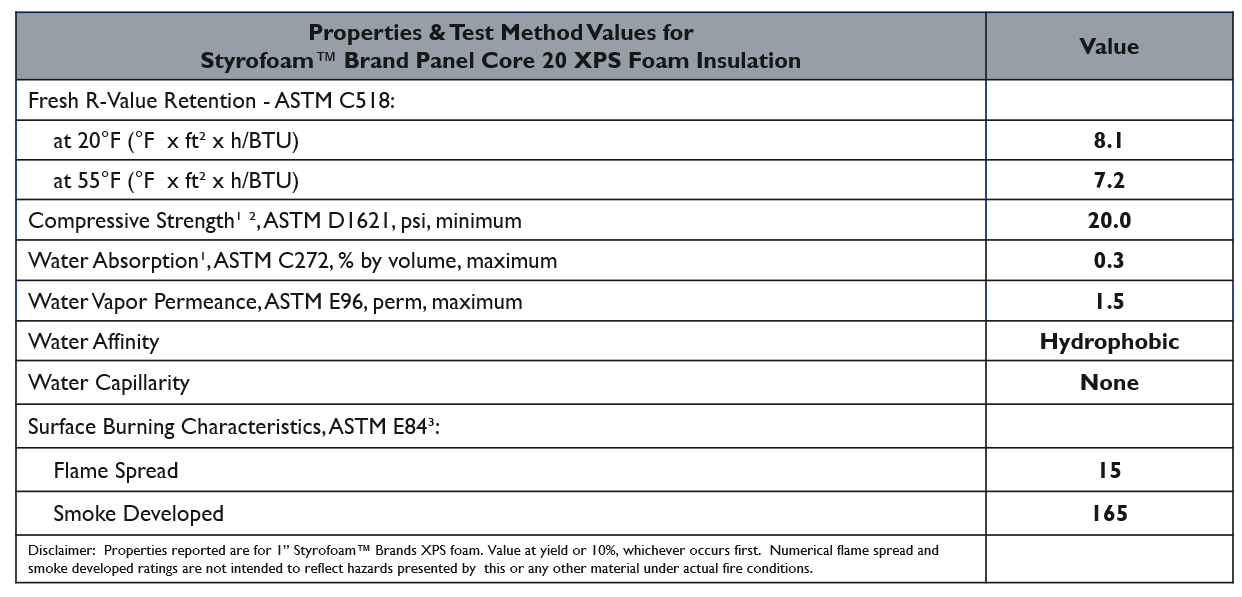

Table 1: Typical Properties of STYROFOAM™ Brand panel core 20 XPS foam insulation

Screen Shot 2017-09-08 at 3.21.37 PM.png
Screen Shot 2017-09-08 at 3.21.47 PM.png
