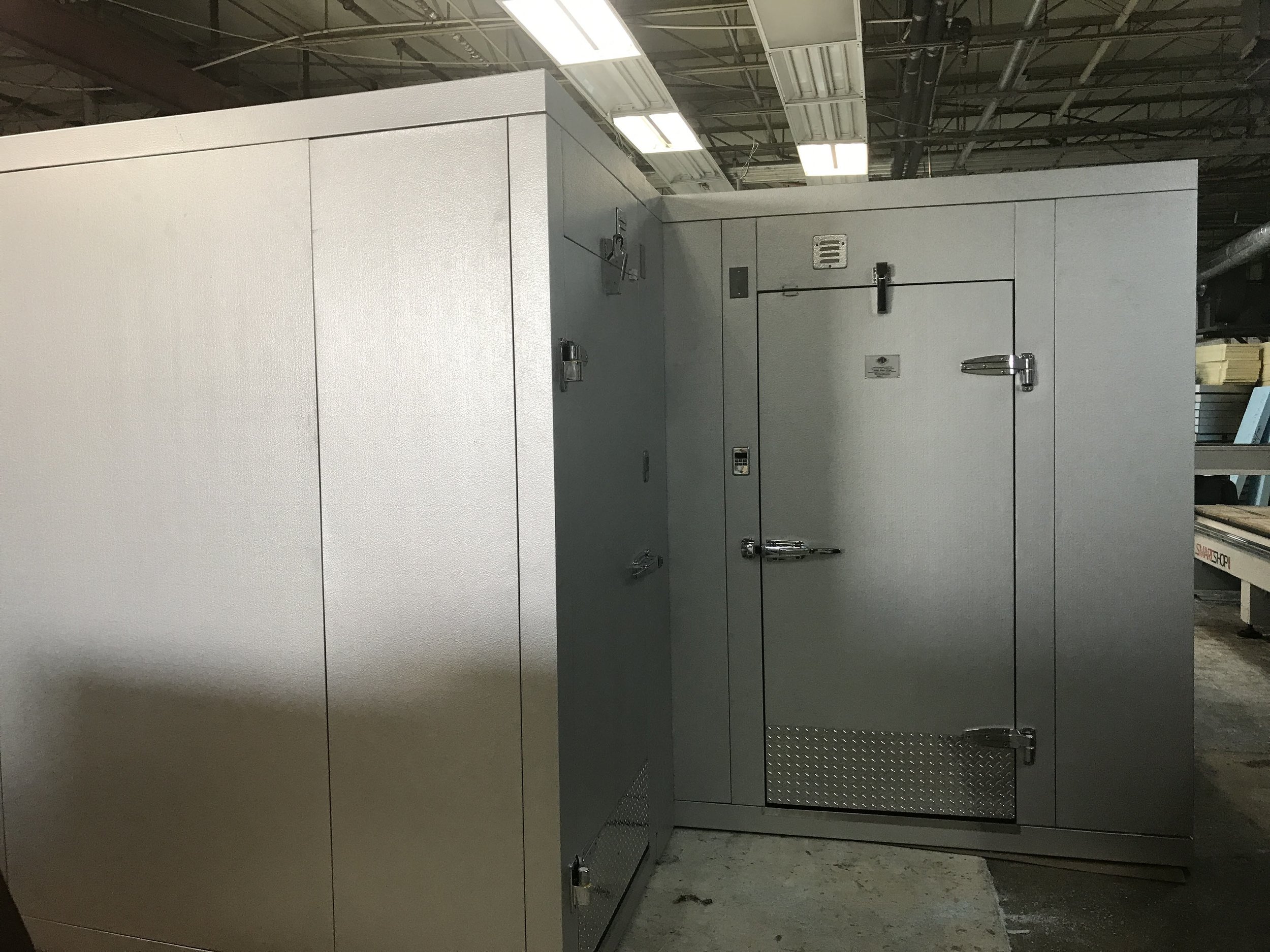

DADE ENGINEERING COMBINATION WALK-IN COLD STORAGE SOLUTIONS
Dade units are designed to maintain optimal temperatures for perishable goods in commercial and industrial settings. Our coolers provide ample storage for various applications, including foodservice operations, convenience stores, and healthcare facilities.
Engineered for efficiency and durability, our coolers are customizable to fit specific project requirements and are built to withstand daily use. With advanced insulation technology, they ensure temperature consistency while minimizing energy consumption, making them a sustainable choice for cold storage solutions.
Seamless installation and compliance with industry standards further enhance their reliability, allowing businesses to focus on delivering fresh products to their customers year-round. Our UL and NSF approved models are supplied with 5-, 10-, 15- and 50-year warranties and manufactured in Miami, Florida.
#DADE DIFFERENCE
“A Dade walk-in isn’t just cold storage, it’s peace of mind. When your dough rises and your schedule
heats up, reliable refrigeration for your combination walk-in unit keeps everything on track.”

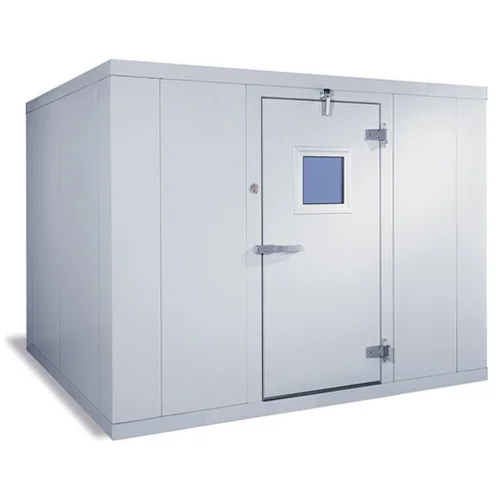

Sizes range from standard 8' x 8' ft units to custom boxes and warehouses.
Coolers are available with or without a floor. Freezers must have an insulated floor.
Interior and exterior wall and roof finish is 26-gauge acrylic coated stucco galvanized.

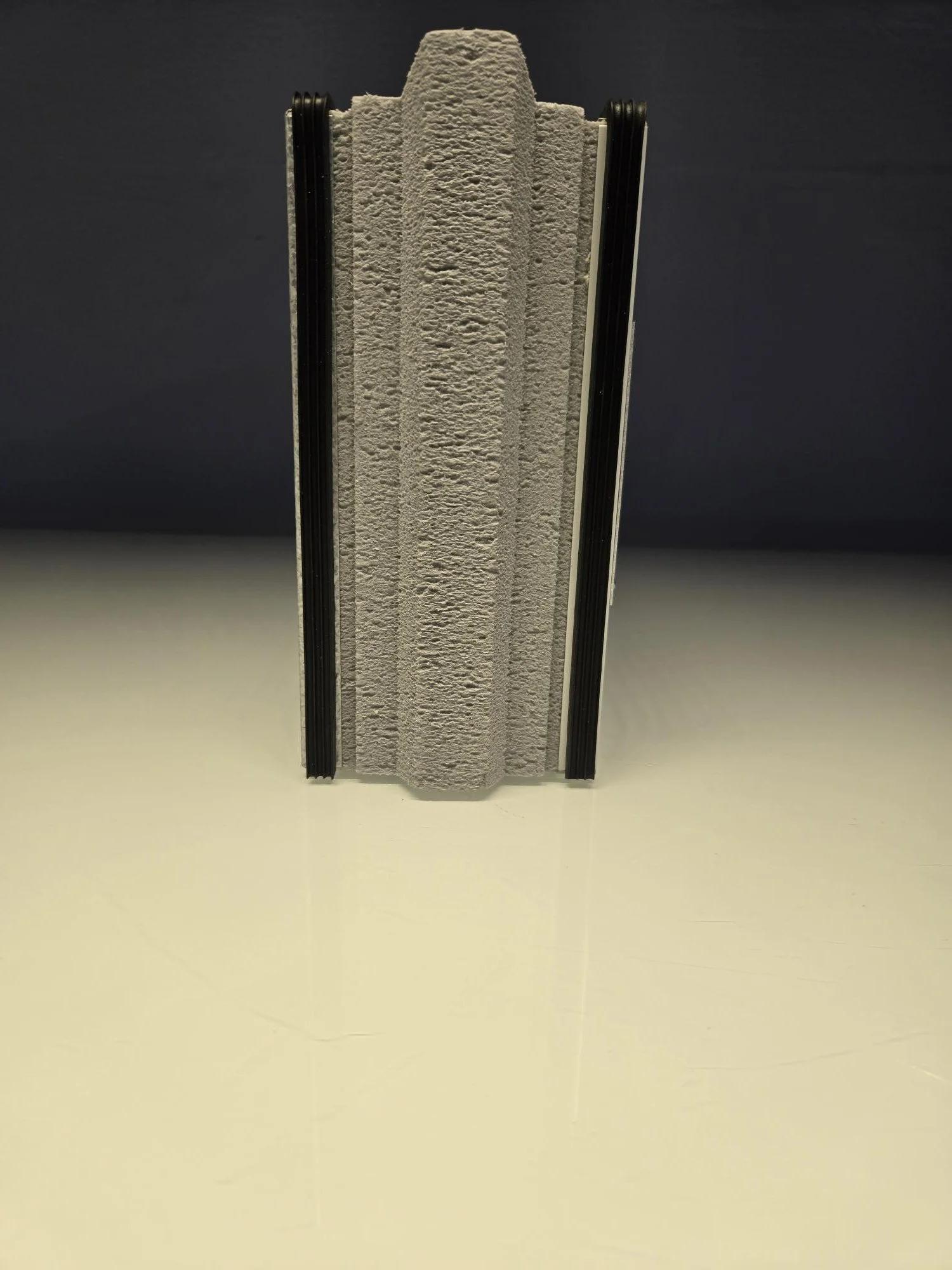

Insulation is 4” thick, rigid extruded polystyrene (XPS) foam closed cell. R-25 for walk-in coolers and R-32 for freezers.

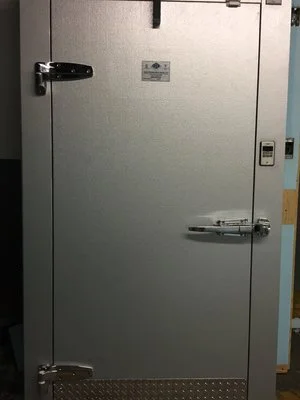

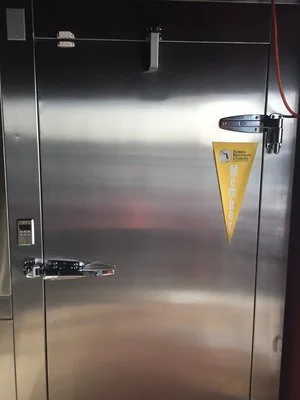

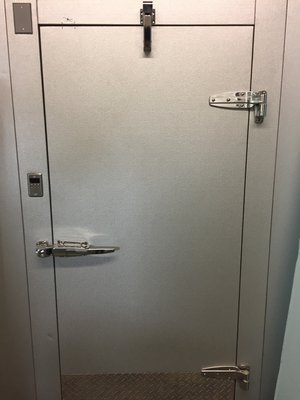

Solid entry door measures 36" w x 78" h, windows and accessories available.

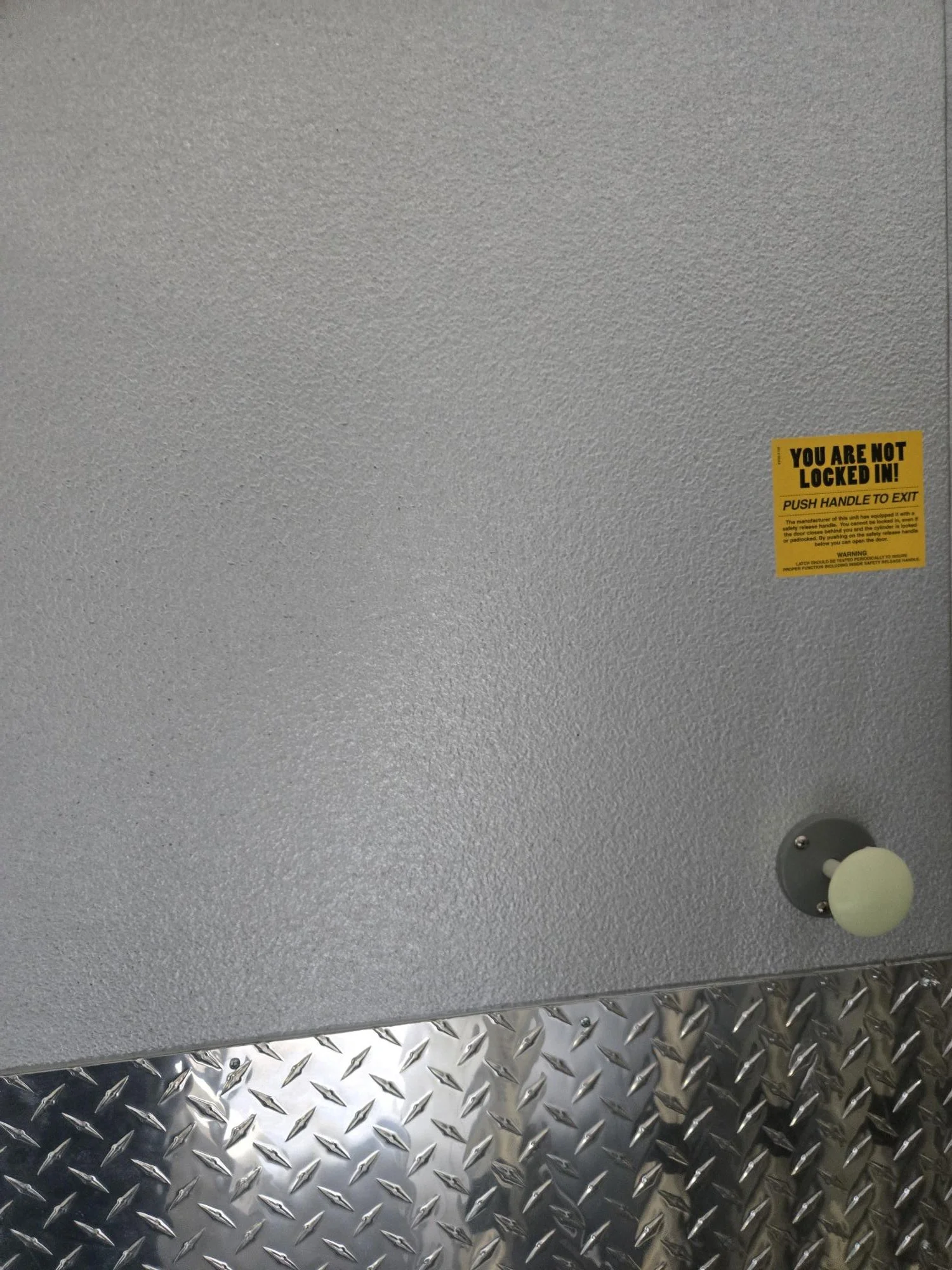

High quality door fixtures -spring loaded, chrome plated latches and hinges, proprietary Dade design.
Airtight joints ensure optimal temperature control.
Modular panel construction is easy to assemble, clean, & maintain as well as install.
Additional options available such as windows, kick plates and storage shelves.
Marketing Literature - Download PDF Files
DADE WALK-IN COMPONENTS
FREEZER FLOORS

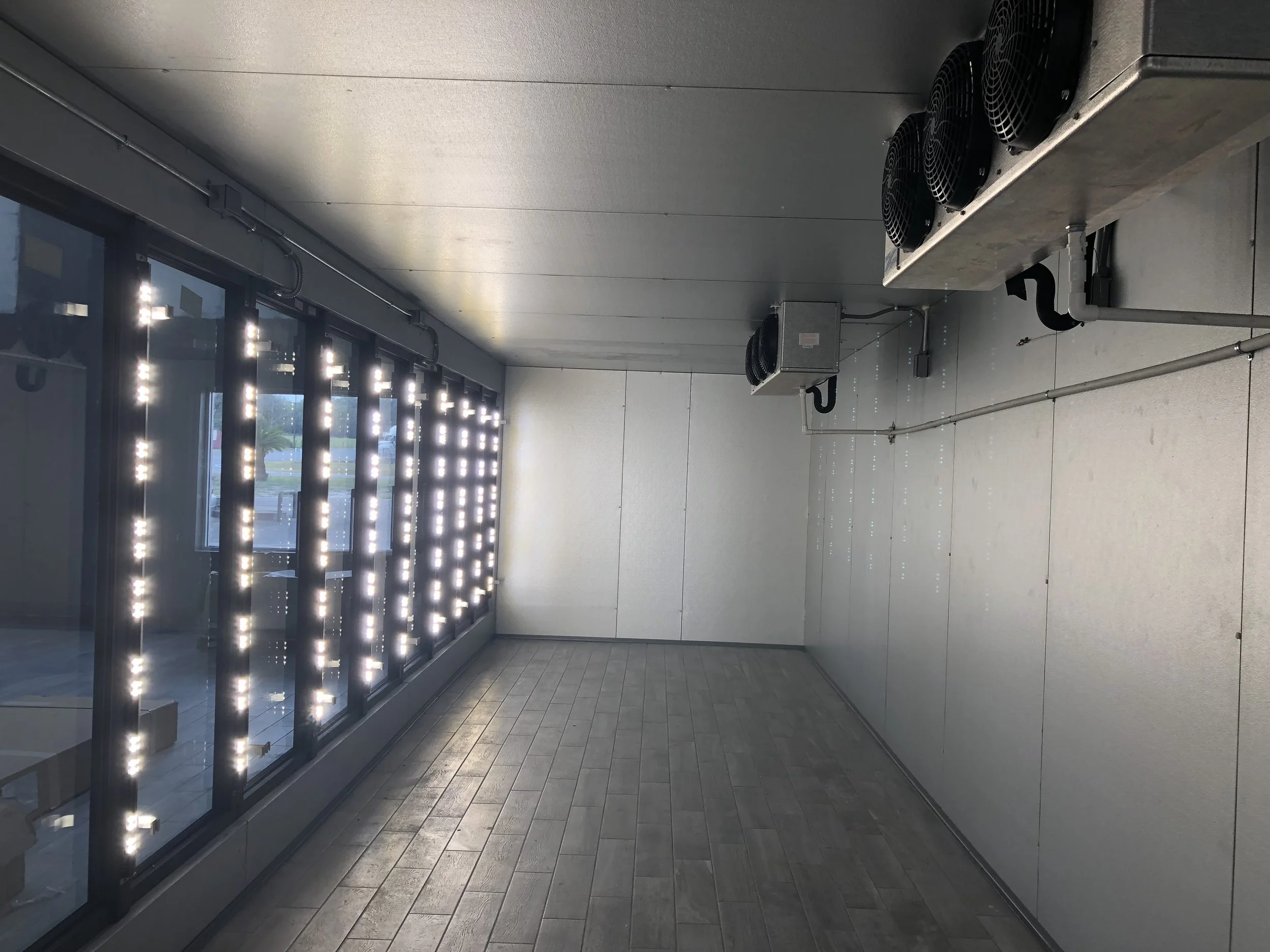

Vapor Proof, LED Light Fixtures with glass globe provided
Optional 4” LED or Fluorescent Extreme Temperature Lights available

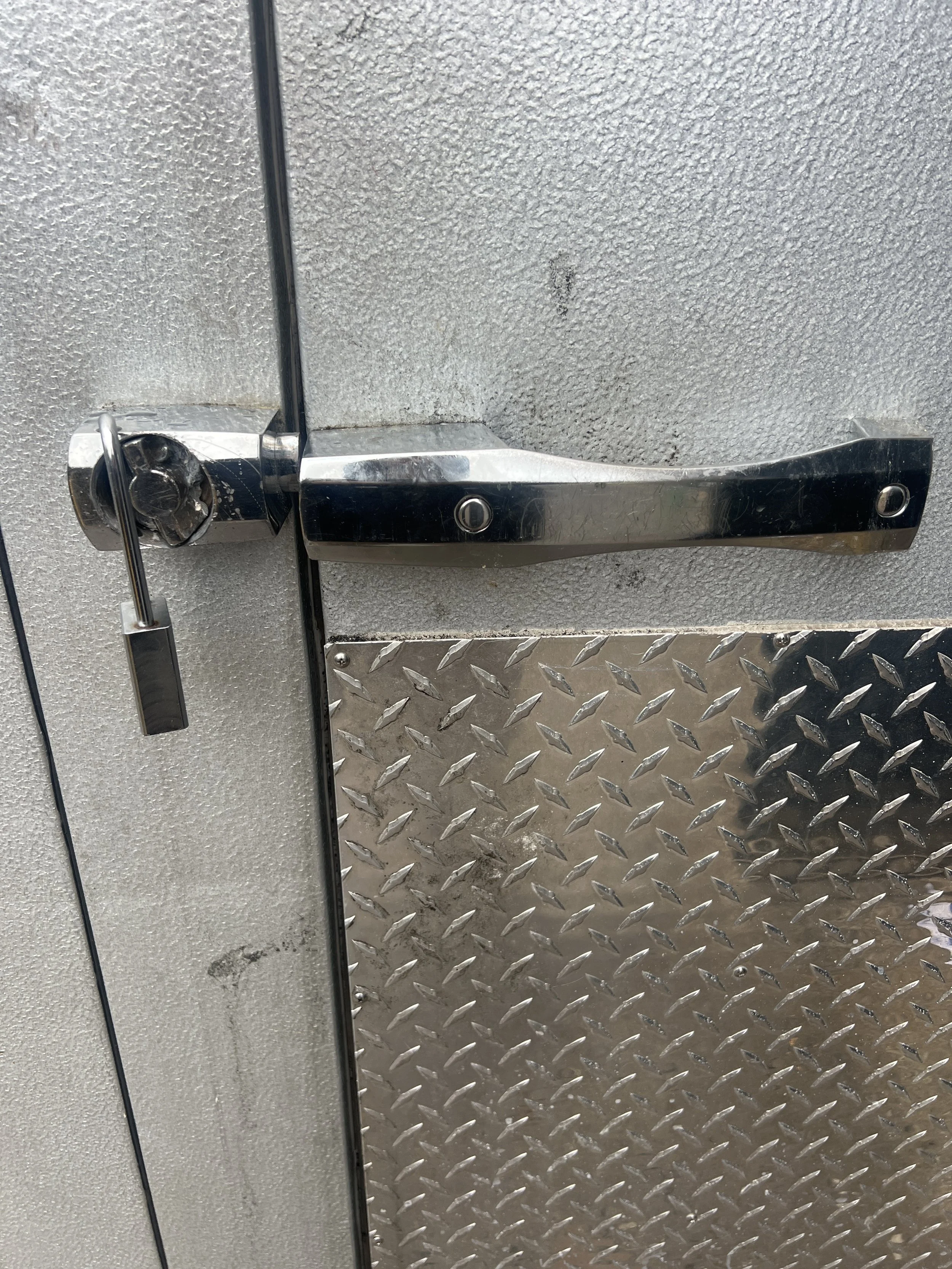

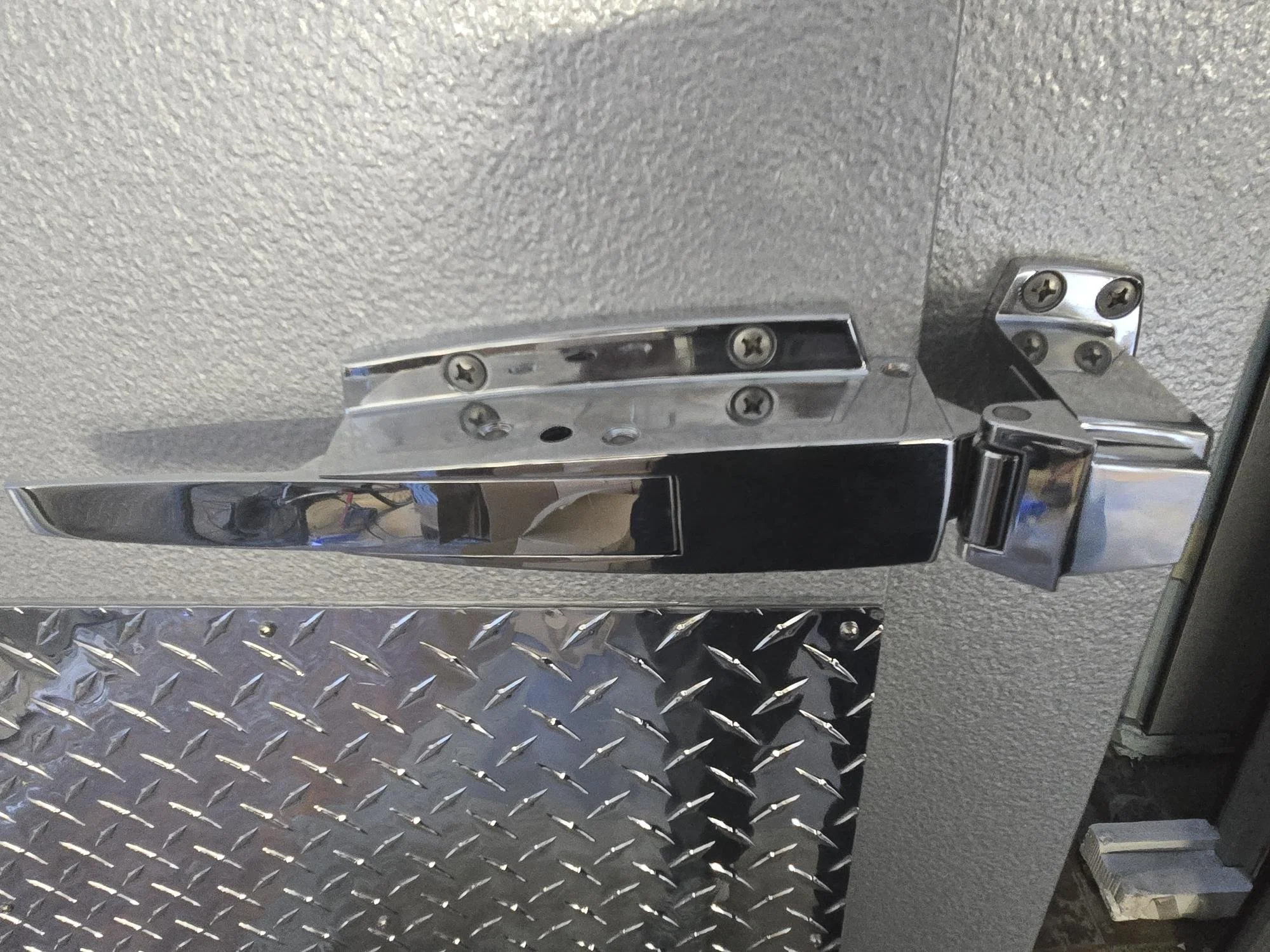

Chrome Plated Latches
Chrome Plated Hinges with Safety Release
Door Closer
Digital LED Thermometer
Heated Pressure-Relief Vent
Heated Pressure-Relief Vent

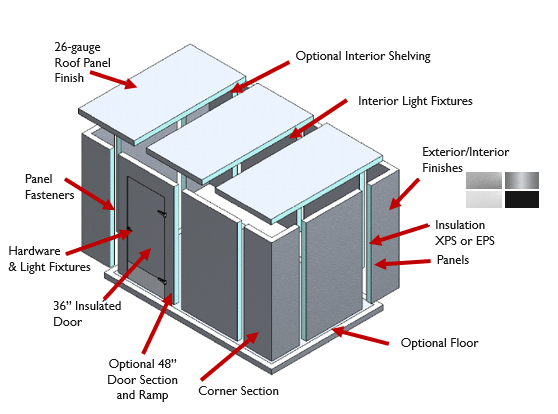

DADE STANDARD COMBINATION WALK-IN FEATURES

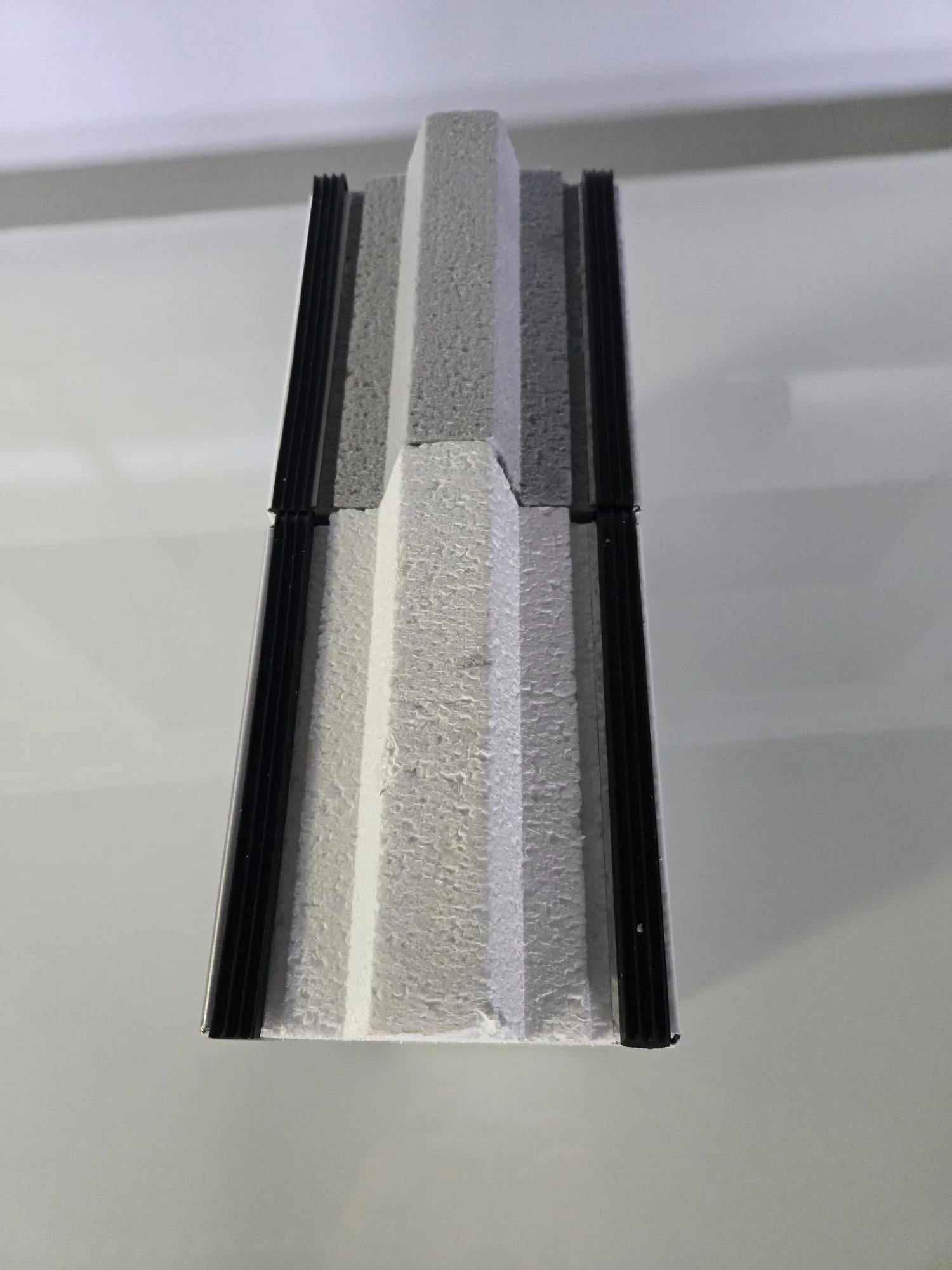

Extruded Polystyrene Foam, XPS

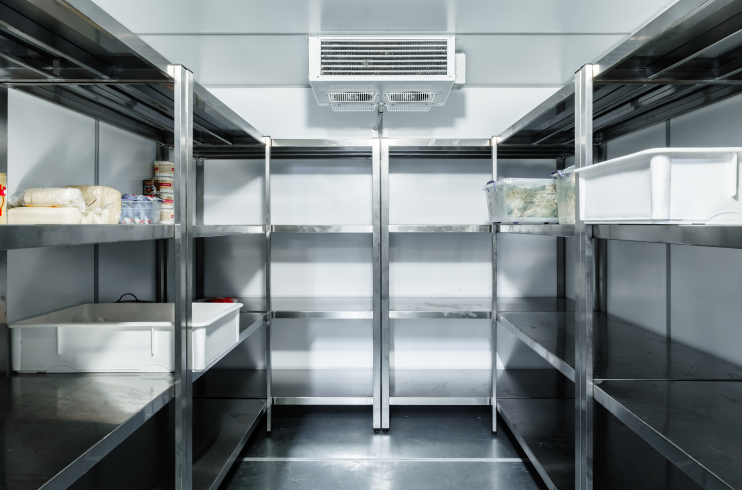

Optional Interior Shelving Available
Insulated reinforced floor for freezer is standard, optional for a walk-in cooler
Choose Wall Finishes
Panel Wall Fasteners
Optional Door Sizes, Standard is 36”

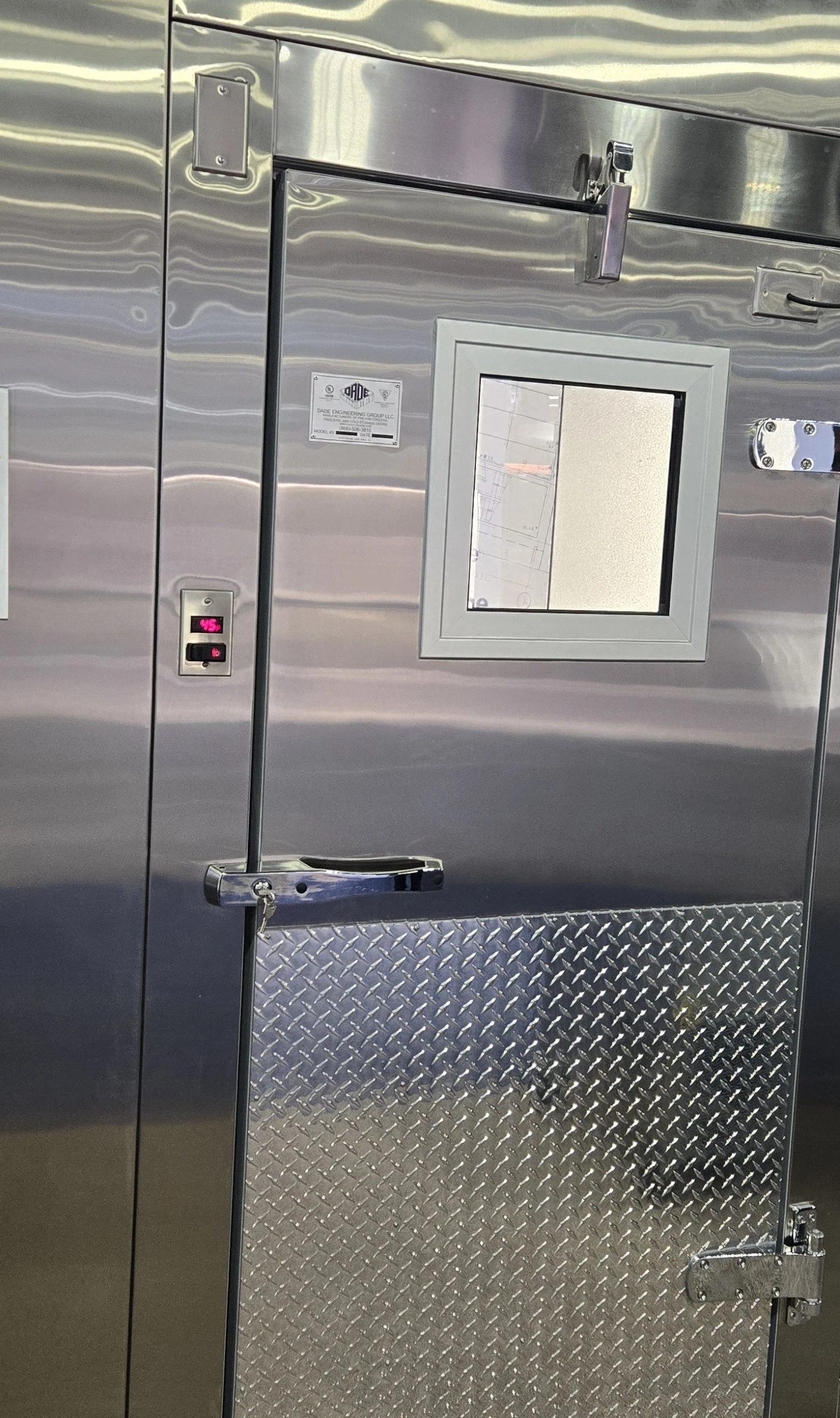

Optional Door Viewing Windows
Optional Exterior Kick Plate
Freezer floors are essential. Insulating under concrete and wood floors can help prevent condensation from high humidity which can cause rot and bacteria growth. Always check local codes.
FLOOR CONSTRUCTION:
Floors are constructed of 22 ga Smooth Mill Floor Plate,
4” Extruded Polystyrene Foam (EISA 2007 Approved),
NSF gasket with Cam-Lock hardwood
Built-in ramp

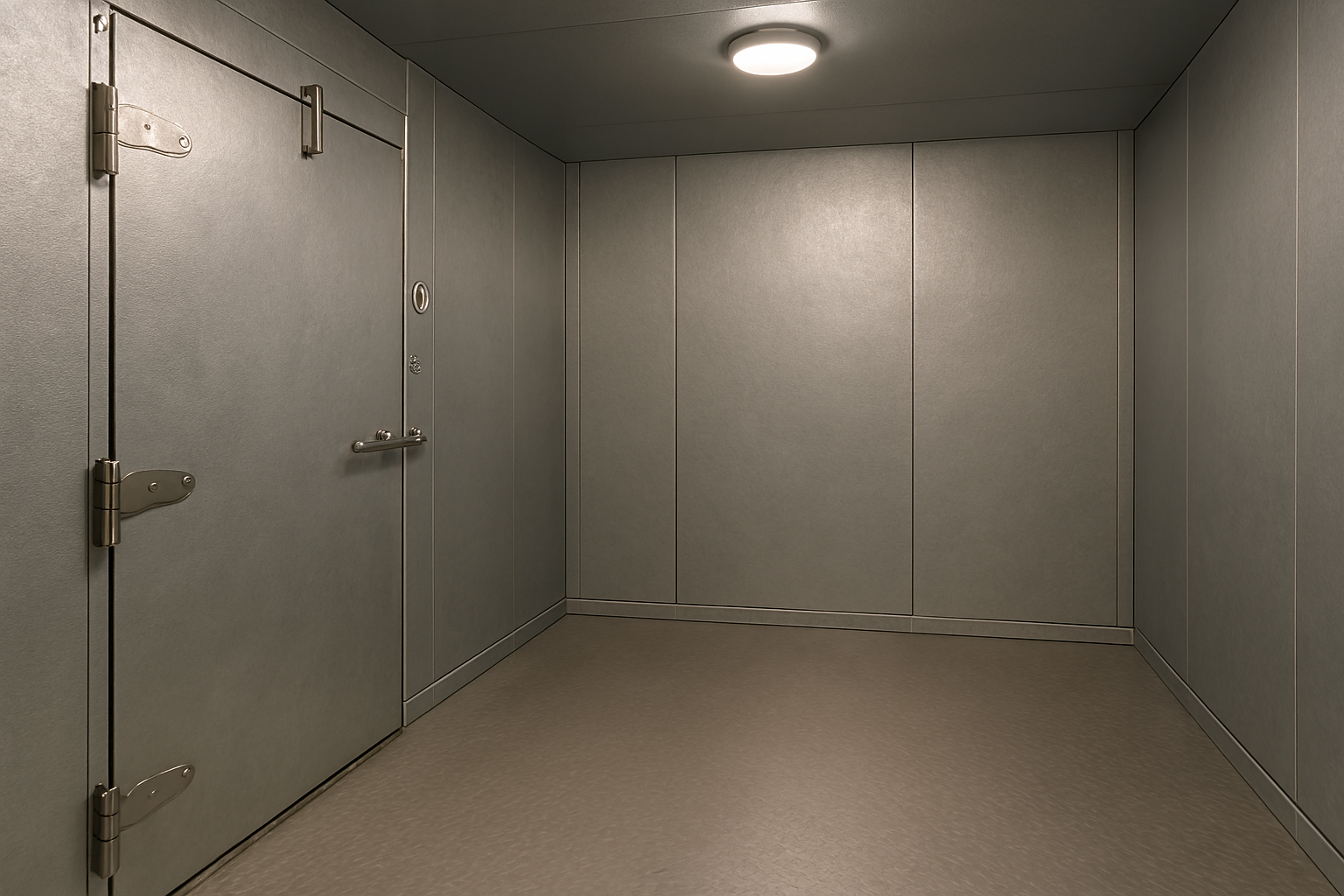

DADE WALK-IN WALL FINISH OPTIONS

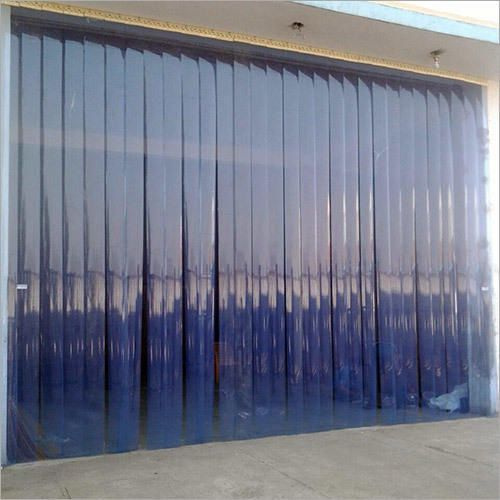

Vinyl Curtains for various size doors
Sliding Barn Style doors
Extruded Polystyrene (XPS, Gray Foam)
55°F Coolers R Value = 28.8
20°F Freezers R Value = 32.4

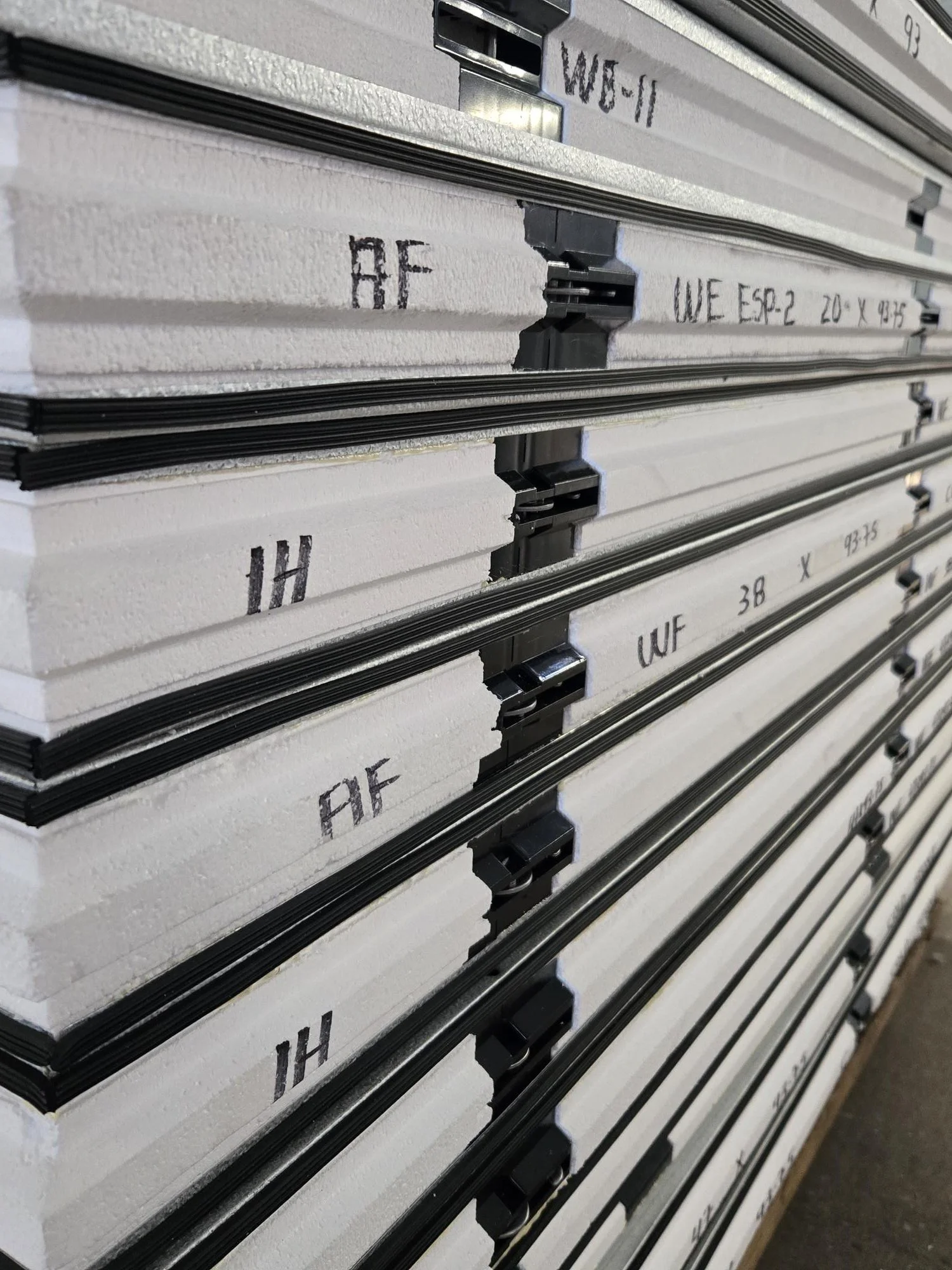

Expanded Polystyrene (EPS, White Foam, Cooler Express, Quick Ship Products)
2 Pound Freezers
At 40°F R Value = 19.04
At 75°F R Value = 16.8
1 Pound Coolers
At 40°F R Value = 16.8
At 75°F R Value = 15.44
26 Gauge Acrylume Stucco Embossed Finish
24 Gauge Smooth Stainless Stee

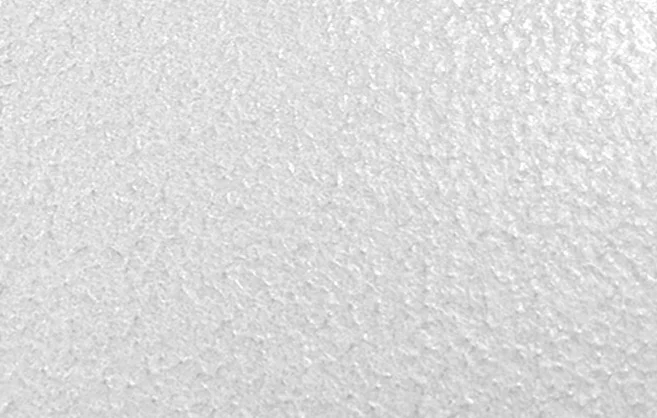

26 Gauge Stucco Embossed White Pre-Painted Galvanized Steel
White, Stainless Steel (Grey) and Black
OPTIONAL ACCESSORIES & SERVICES

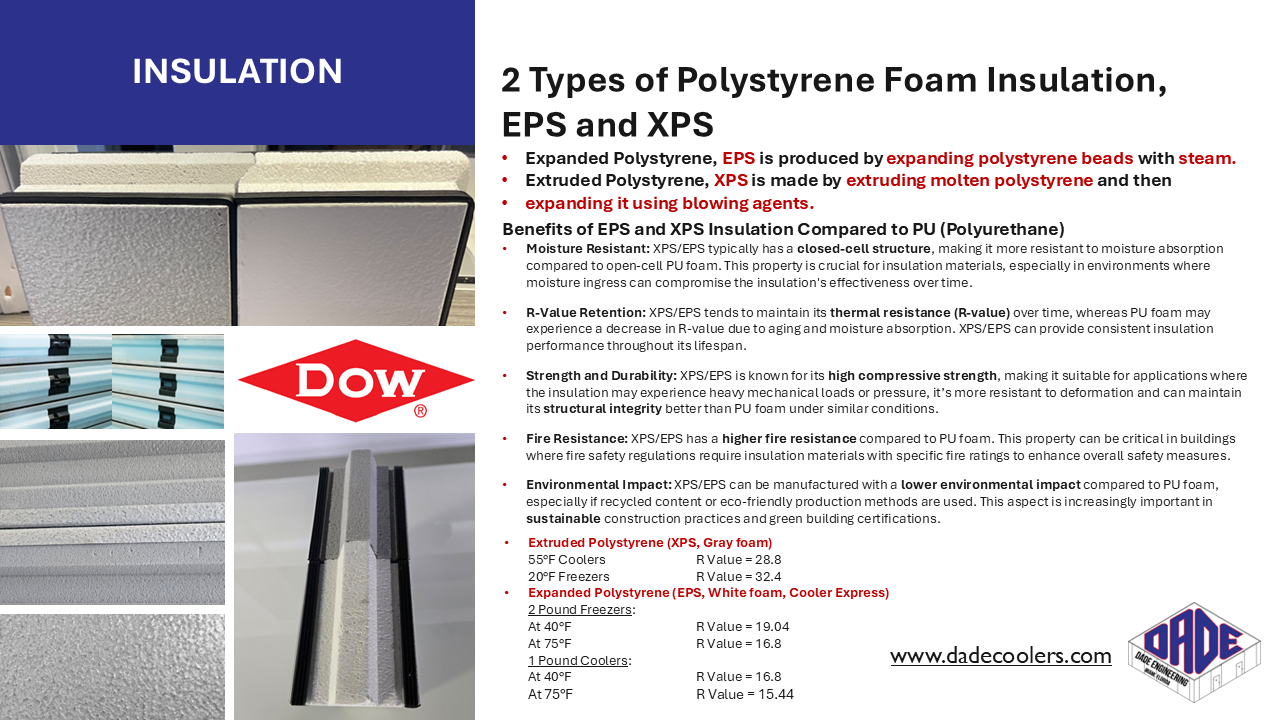

FOAM INSULATION BENEFITS - EPS & XPS
XPS R-Value
EPS R-Value
Kick plates for doors
Interior and exterior ramps
For installation services call 800-321-2112.
Refrigeration maintenance
QUICK SHIP PROGRAM
We are pleased to offer Quick Ship Program on our popular standard walk-in coolers & freezers, which come in various sizes from 8’ x 8’, 8’ x 10’, and 10’ x 10’ ft. In addition to these units, we also provide any necessary door replacements or parts that you might need to ensure that your refrigeration expectations are fully met. Should you require further assistance, wish to place an order, or need a walk-in cooler repair or parts, please do not hesitate to contact us for support.
Contact customer service at 800-321-2112
Email Dade at quotes@dadecoolers.com
About Dade Engineering Products, Click to download Trifold Brochure
CUSTOMIZED, OUTDOOR COOLERS & REPAIRS
CUSTOMIZED - Dade can tailor your cold storage solutions. You’re not limited to standard options; we can design to meet your specific space, safety needs, and compliance regulations.
Customize options include but not limited to square footage, electronics, doors, finishes, hardware, windows, shelving, floors, ramps, lighting, outdoor models, and walk-in cooler freezer combo.
OUTDOOR COOLERS - Outdoor walk-in coolers, freezers, and combination units are designed for both warm and cold settings. They feature a rainproof roof membrane on the inside, complete with flashing. We use anchoring hardware and a door rain cap to maintain a controlled temperature.
REPAIRS or REFRIGERATION UPGRADE - Dade can repair, upgrade, or retrofit your walk-in, doors or frame. Often, just repairing or retrofitting can extend the life of your walk-in and improve efficiency. Replacement parts can be ordered for most walk-in models and should be installed by qualified professionals.
DADE WALK-IN APPLICATIONS
Convenience Store | Restaurants | Floral Shops | Mortuaries | Grocery Stores | Healthcare | Pharmaceutical | Craft Breweries | Wineries | Distilleries
Meat & Fish Processing | Hunting Lodges | Farmers Markets | Agricultural Farms | Greenhouses/Horticulture & Nurseries | Bars
Entertainment Venues | Stadiums | Hospitality | Clean Rooms | Educational | Institutional | Military
Expanded Polystyrene, EPS is produced by expanding polystyrene beads with steam.
Extruded Polystyrene, XPS is made by extruding molten polystyrene and then expanding it using blowing agents.
Benefits of EPS and XPS Insulation Compared to PU (Polyurethane)
Moisture Resistance: XPS/EPS has a closed-cell structure, resisting moisture better than open-cell PU foam, preserving insulation effectiveness.
R-Value Stability: XPS/EPS maintains thermal resistance over time, unlike PU foam, which can lose R-value due to aging and moisture.
Strength: XPS/EPS offers high compressive strength, resisting deformation and enduring heavy loads better than PU foam.
Fire Resistance: XPS/EPS is more fire-resistant, meeting stricter fire safety standards.
Environmental Impact: XPS/EPS can have lower environmental impact, especially when made with recycled or eco-friendly methods, supporting sustainable construction.
